HIKVISION DS-7764NI-M4 64-ch 8K NVR

Technical Details

• Video And Audio
• IP Video Input

  64-ch

  Up to 32 MP resolution

  *: After ultra HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs.

• Incoming Bandwidth400 Mbps
• Outgoing Bandwidth400 Mbps
• HDMI 1 Output8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• HDMI 2 Output

  4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

  *: When HDMI 1 output resolution is 8K, the maximum HDMI 2 output resolution is 1080p.

• VGA Output1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• Video Output ModeHDMI1/VGA simultaneous output, HDMI1/HDMI2 independent output
• CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
• Audio Output1-ch, RCA (Linear, 1 KΩ)
• Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)

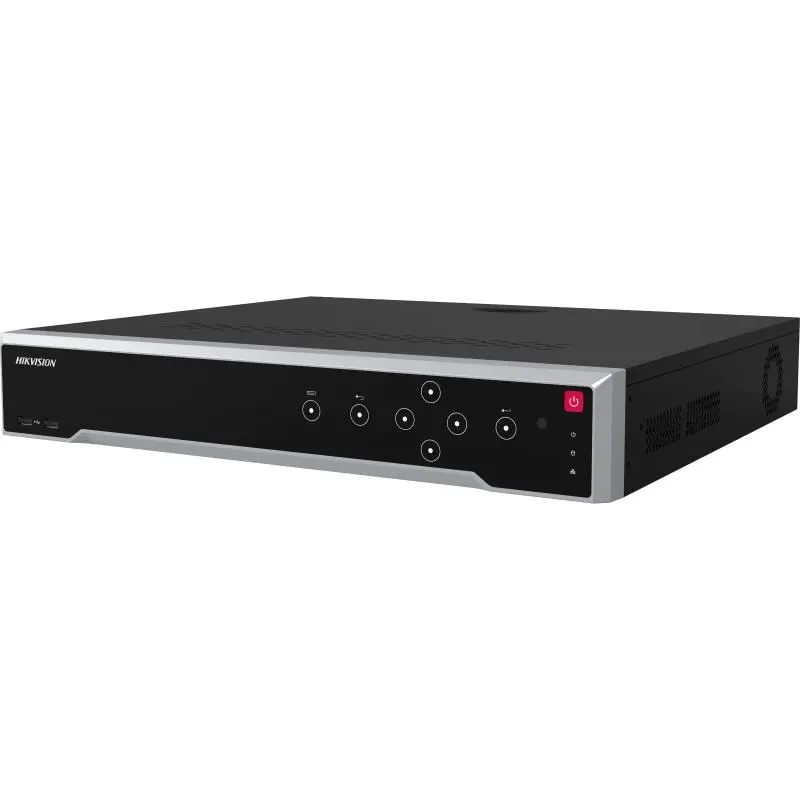

• DS-7764NI-M4 64-ch 1.5U 8K NVR
